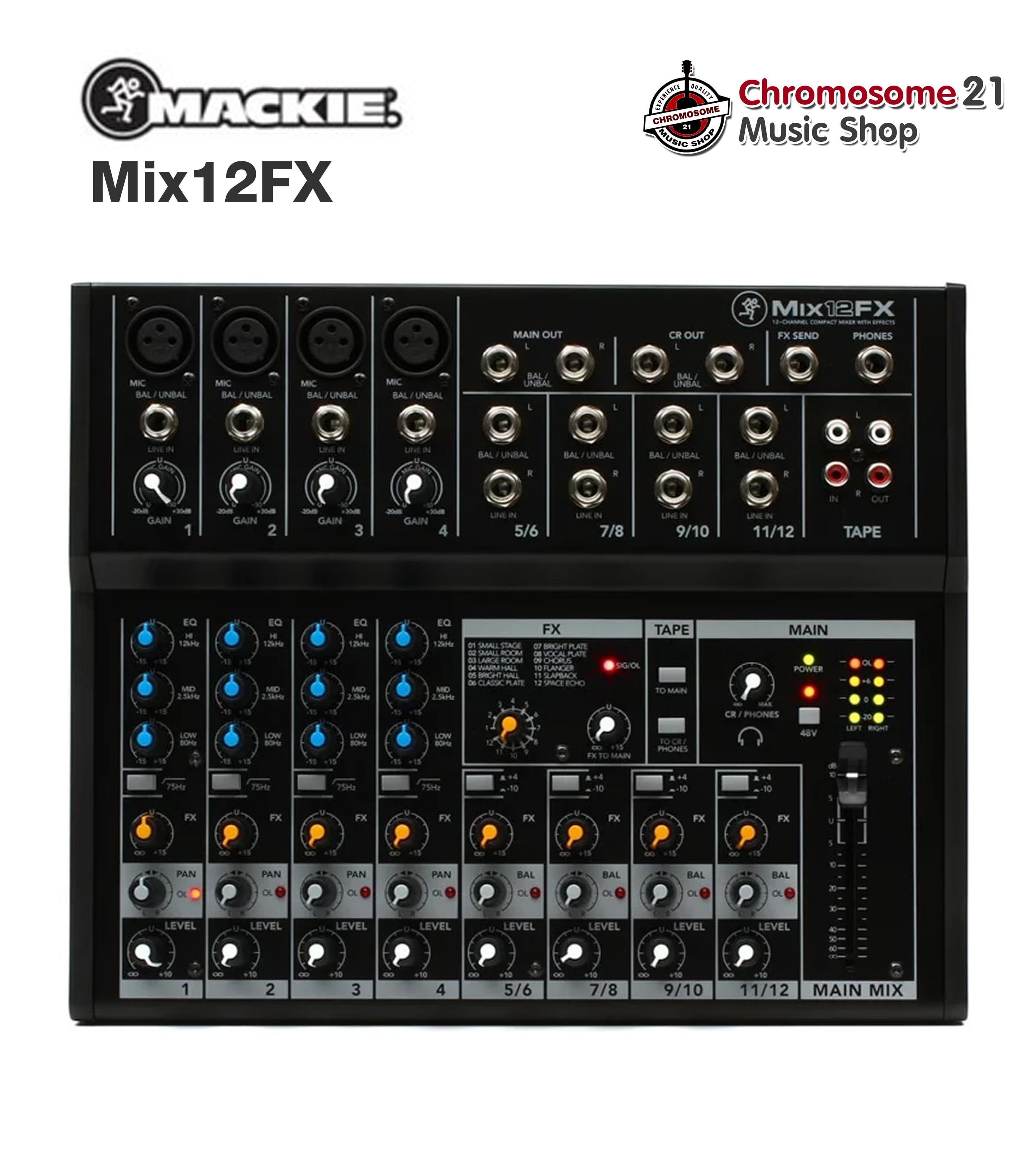

Mackie Mix12FX Compact Desktop Mixer Features:
- A high-performance, 12-input desktop mixer with onboard effects
- 4 mic/line input channels includes switchable phantom power
- Each mono channel also features a 3-band EQ and highpass filtering
- 4 stereo channels offer a choice of balanced and unbalance line input for
- FX send on each channel lets you pass signal to the dedicated effects processor
- 12 onboard effects let you add space, depth, and dimension to your mix
- Tape RCA I/O offers additional signal routing options
- Separate Main Mix and Headphones/CR volumes provide added mixing flexibility
- Built to Mackie’s toughness standards for portable use
Tech Specs
- Type:Analog
- Channels:12
- Inputs – Mic Preamps:4 x XLR
- Phantom Power:4 Channels
- Inputs – Line:12 x TRS, 1 x stereo RCA
- Outputs – Main:2 x TRS
- Outputs – Other:1 x stereo RCA (Tape), 2 x TRS (Control Room)
- Aux Sends:1 x Post
- Send/Return I/O:1 x TRS (FX Send)
- Headphones:1 x 1/4″
- EQ Bands:3-band
- Effects:Yes
- Height:2.1″
- Width:11.7″
- Depth:9.6″
- Weight:3.7 lbs.
