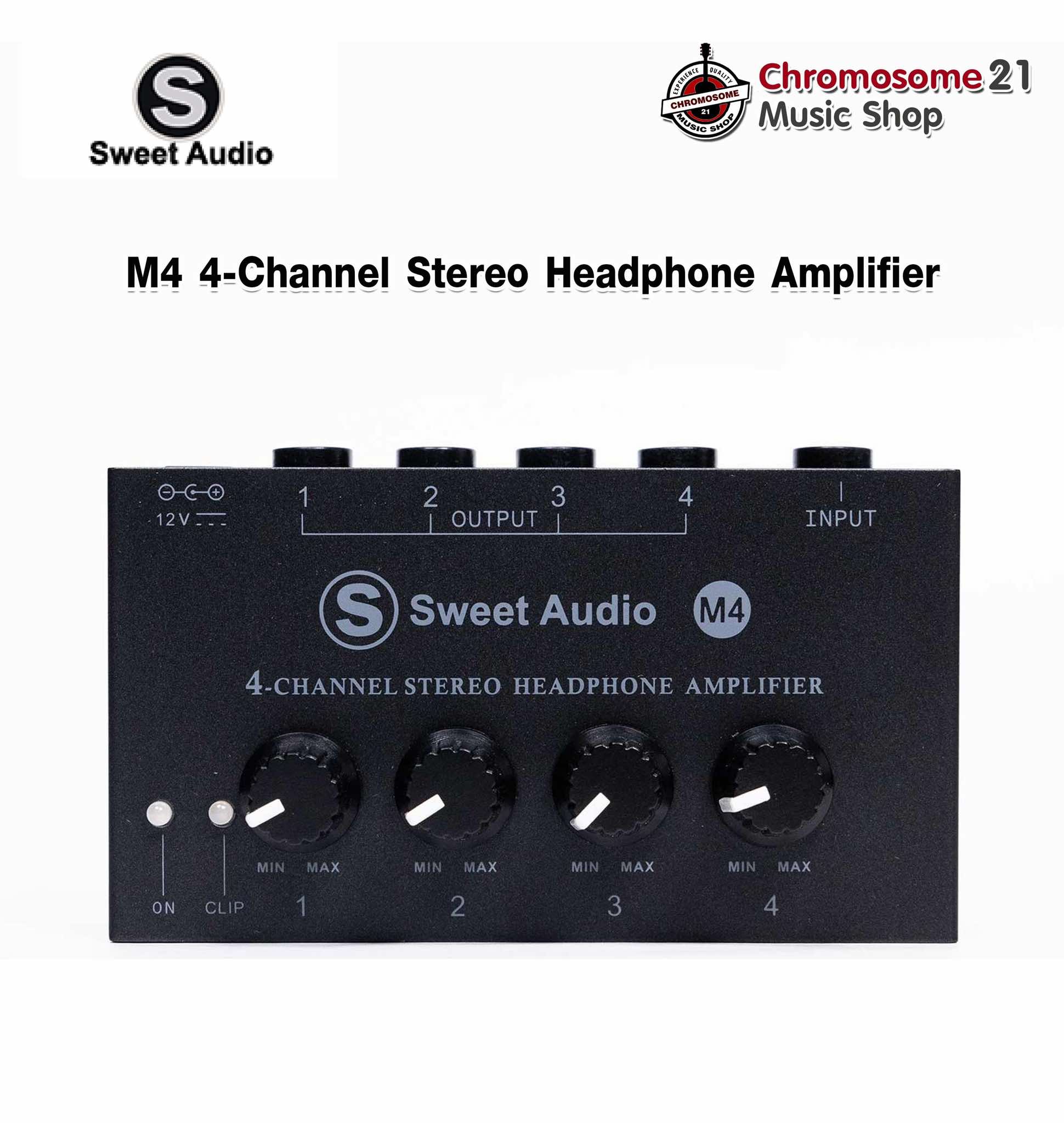

เครื่องขยายเสียงหูฟัง Sweet Audio M4 4-Channel Stereo Headphone Amplifier

คุณสมบัติ

ㆍเอาต์พุตหูฟังสเตอริโอ 4 ช่องพร้อมปุ่มควบคุมระดับเสียงแยกกัน
ㆍขนาดเล็กและพกพาสะดวก
ㆍมีอะแดปเตอร์ DC 12V รวมอยู่ด้วย
ㆍไฟ LED แสดงสถานะอินพุต
ㆍเครื่องขยายเสียงสเตอริโอกำลังสูงเพื่อเสียงรบกวนต่ำและคุณภาพเสียงชั้นยอด แม้จะเปิดระดับเสียงสูงสุด

This four-channel stereo headphone amplifier is designed to provide high-fidelity stereo sound, even at high volumes, up to four people listening to audio simultaneously. This Compact unit offers independent volume control for each headphone output, and is suitable for all types of headphones and earphones with a 1/4″ jack or adapter. The P5’s high-power stereo amplifier delivers clean, clear audio with low noise, even at maximum volumes.

Features

ㆍ4 stereo headphone outputs with independent volume controls
ㆍSmall and portable
ㆍ12V DC adapter included
ㆍInput clip LED
ㆍHigh-power stereo amplifer for low noise and top sound quality, even at max volume

WARNING

LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE.
HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE.

Overexposure to excessive sound levels can damage your ears, resulting in permanent noise-induced hearing loss. Do not use earphones for a long time and set the volume below low.

APPLICATION

Connect the & TRS input of the P5 to your mixer/sound source. If your mixer has a TRS (stereo) Aux output, you can use a 1/4″ TRS cable. if your aux outputs are TS (mono), you will need an insert cable to send two TS 14″ aux outputs (left and right) to a single 14″ TRS (stereo) plug.

SPECIFICATIONS

Input

Type: 1/4″ TRS stereo input Type
Impedance: 40 kQ
Max. input level: +15 dBu

Headphone output

Type: 1/4″ TRS stereo output Type
Impedance: 50 Q
Max. output level: 50 mW @ 32 0hm

Power supply

Type: DC 12V, 300 mA, center-positive
Dimensions(W x H x D): 104mmx59mmm x x 46 mm (4.1″x.2.3″x18″)
Weight: 197 g (0.43 Ibs)

LEGAL DISCLAIMER

SWEET AUDIO accepts no liability for any loss which ma suffered by any person who relies either wholly or in part upon any description, photograph, or statement containe herein. Technical specifications, appearances and other information are subject to change without notice.

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding the SWEET AUDIO Limited Warranty, please email support@fzonetechnology.com
