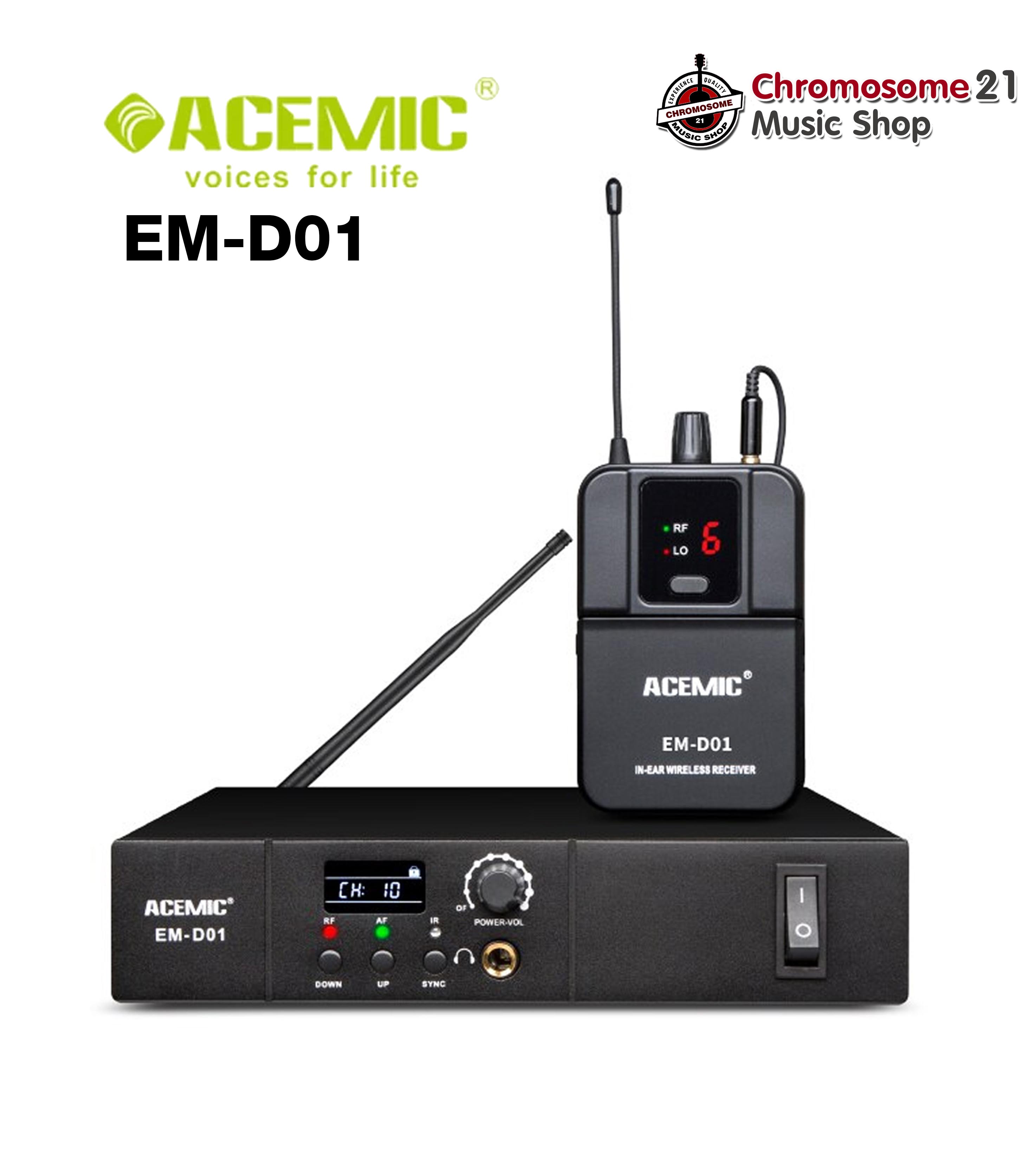

ไวเลส เอียร์มอนิเตอร์ ACEMIC EM-D01

EM-D01（Single Channel）

Single Channel Wireless In-Ear Monitor System

UHF 600-928MHz frequency range
Mono Audio Output
Pre-set 16 selectable frequencies
IR sync downloading the frequency from receiver
LCD display and LED digital tube shows the working channel
EIA standard 1/2U rack-mountable metal chassis
Up to 80m line-of-sight operating range
Designed for stage performing, music band, teaching, conference etc applications

Transmitter(Main Unit)

Frequency Range ： 600-937MHz(Region dependent)

Transmission Method : FM,Mono

Channels :  16

RF Output Power: 10mW/50mW

Frequency Response: 60Hz-17KHz+/-3dB

T.H.D : <0.5%at 1KHz

Display : Back lit LCD

Audio Input: 6.35mm/XLR

Antenna  :  TNC

Power Supply  :  DC12V-18V/1000mA

Dimensions(L*W*H) : 212*177*44mm
